Description
Product Overview

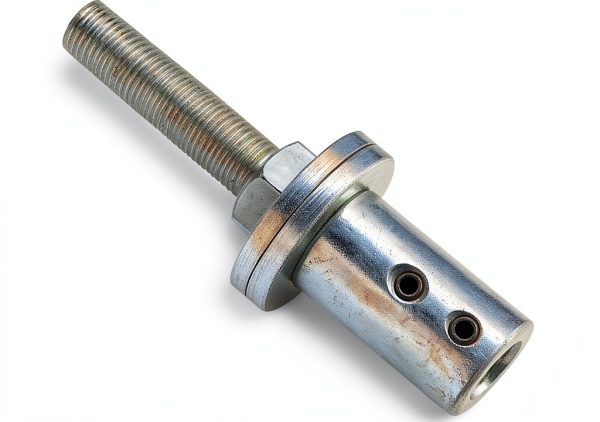

The DAYTON 3ZN07 slotting cutter arbor is engineered for precision slotting tasks in industrial and scientific settings. Constructed from high‑grade metal, this arbor provides exceptional rigidity and wear resistance, ensuring long‑term accuracy. With overall dimensions of 4 × 4 × 1.5 inches and a thread length of 2.5 inches, it accommodates a maximum wheel width of 1‑13/16 in and a washer outer diameter of 1.5 in. The lightweight design (1 lb) facilitates easy handling without compromising strength, making it suitable for both high‑volume production and detailed custom work.
Usage
Designed for machine shops, manufacturing facilities, and maintenance workshops, the 3ZN07 arbor excels in creating precise slots in metal, plastic, and composite materials. Its compact size allows installation on standard milling machines, CNC routers, and manual slotting equipment. Technicians use it for gear tooth preparation, keyway cutting, and custom fixture fabrication. The arbor’s compatibility with a range of wheel widths makes it versatile for diverse slotting applications, from small‑scale prototyping to large‑scale production runs.
Why Choose Us
DAYTON is a trusted name in industrial tooling, known for rigorous quality control and durable designs. Each 3ZN07 arbor undergoes precise machining and heat‑treatment processes to meet exacting standards, ensuring consistent performance batch after batch. Our commitment to customer satisfaction includes responsive support and a straightforward return policy, giving you confidence in every purchase. When you choose this arbor, you benefit from proven reliability, minimal downtime, and a tool that maintains its tolerance over extended use.
Key Features
- High‑strength metal construction for superior durability and wear resistance.
- Compact 4 × 4 × 1.5 in dimensions enable use in tight machine setups.
- Maximum wheel width of 1‑13/16 in supports a wide range of slotting cutters.
- Lightweight (1 lb) design reduces operator fatigue while maintaining rigidity.
- Precision‑machined threads and dimensions ensure accurate, repeatable slotting results.
FAQ
What size slotting cutters can I use with the 3ZN07 arbor?
The arbor accommodates cutters with a maximum wheel width of 1‑13/16 in and a washer outer diameter of 1.5 in, covering most standard slotting tools used in industrial applications.
Is this arbor compatible with CNC machines?
Yes, the 3ZN07 is designed for both manual and CNC slotting equipment. Its standard thread size and compact dimensions make it a versatile choice for automated machining centers.
Can I use this arbor for materials other than metal?
While optimized for metal slotting, the arbor performs well with engineered plastics and composite materials, provided the appropriate cutter is selected.
What is the warranty on the DAYTON 3ZN07 arbor?
DAYTON offers a one‑year limited warranty covering manufacturing defects, ensuring you receive a reliable product backed by the brand’s reputation.
How do I maintain the arbor for long‑term use?
Regularly clean the arbor to remove metal shavings, inspect the threads for wear, and store it in a dry environment. Periodic lubrication of the threads can further extend its service life.
